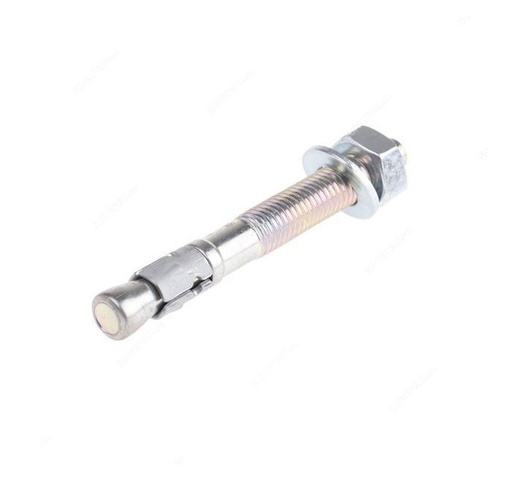

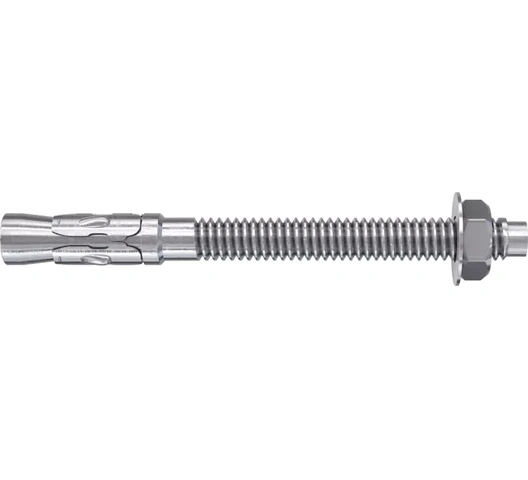

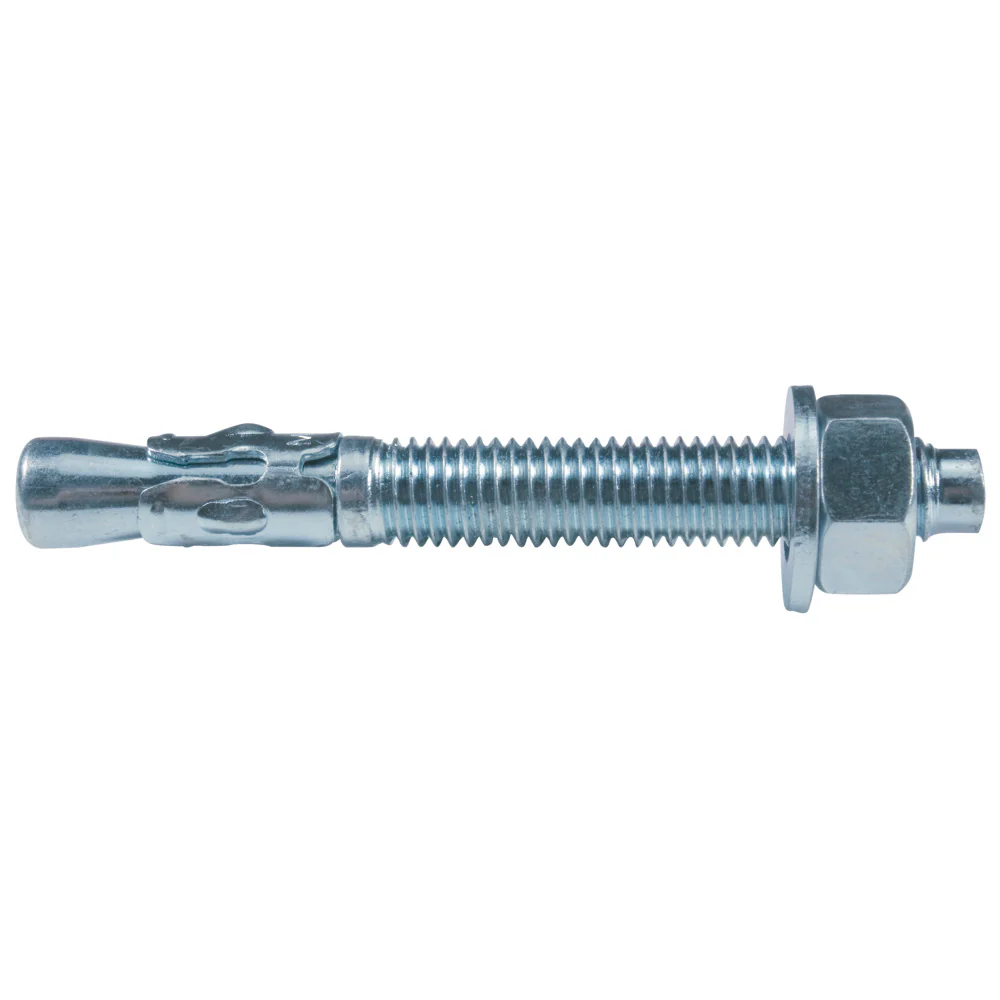

ANCHOR BOLT M10X95 FIS-FWA FISCHER
by FISCHER
Product Details
Applications
Ideal for secure fastening in structures like:
-
Steel frameworks, guard rails, ladders, consoles
-
Cable trays, machines, staircases, gates, façades
Designed exclusively for non-cracked concrete (C20/25) substrates.
Installation Guide
-

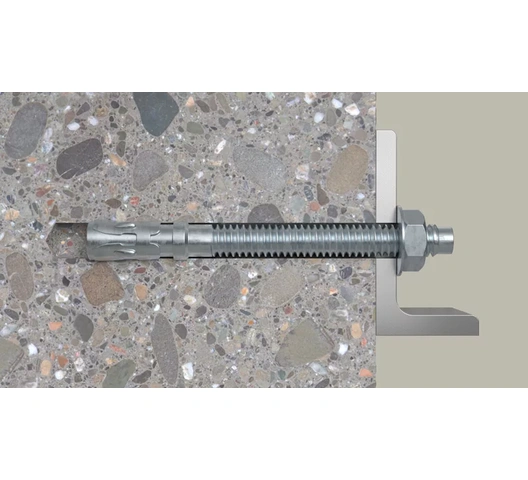

Drill a 10 mm hole to at least 95 mm depth.
-
Insert the anchor; adjust hex nut so the drive-in pin projects ~3 mm.
-
Tighten to specified torque—this pulls the cone into the clip, expanding it to grip the hole walls.
-
Secure fixture; ensure anchor flushes perfectly with material.
(Suitable for both push-through and pre-positioned installations)
Ideal Use Cases
-
Economical fixing where approvals aren't mandatory
-
Internal and external constructions requiring durability
-
Projects benefiting from reduced hole depth and faster anchor setting
Why Choose FWA 10 × 95?
-
Efficient installation with reduced drill and set depth
-
High-performance anchorage ideal for a wide range of construction needs
-
Flexibility in environments, with corrosion-resistant steel options available
-
Global compatibility thanks to metric and imperial threading
Description
The FWA bolt anchor is a cost-effective, non-approved wedge anchor designed for safe and secure fixing in non-cracked concrete (≥ C20/25). Its reduced anchorage depth ensures quick installation and robust performance without requiring system approvals.
Key Benefits
-
Time-saving installation: Minimum drill depth of 95 mm allows faster work and flexible planning.
-
High load capacity: Standard anchorage depth guarantees strong fixing so fewer anchors or smaller baseplates are needed.
-
Material options: Available in zinc-plated (indoor) or hot-dip galvanised/sherardised steel (enhanced corrosion resistance).
-
Versatile threading: Offered with metric and imperial thread standards for global compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Drill hole Ø (d₀) | 10 mm |
| Min. hole depth (h₂) | 95 mm |
| Anchor length (l) | 95 mm |
| Width across hex nut | 17 mm |
| Material | Zinc-plated, hot-dip galvanised, or sherardised steel |
| Packaging | Folding box, 50 pcs |
| EAN / GTIN | 4006209457931 |
