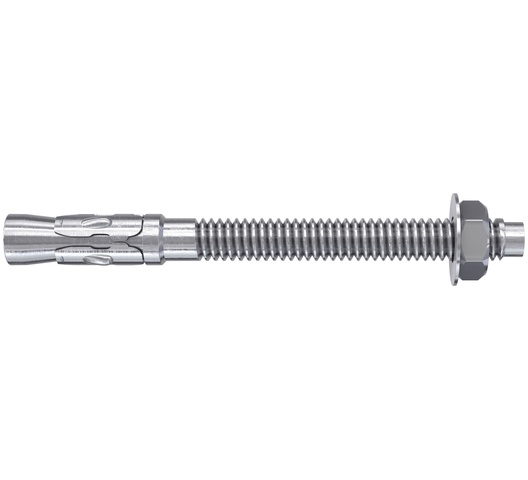

ANCHOR BOLT M12X100 FIS-FWA FISCHER
by FISCHER
Product Details
Typical Applications
Perfect for anchoring:
-

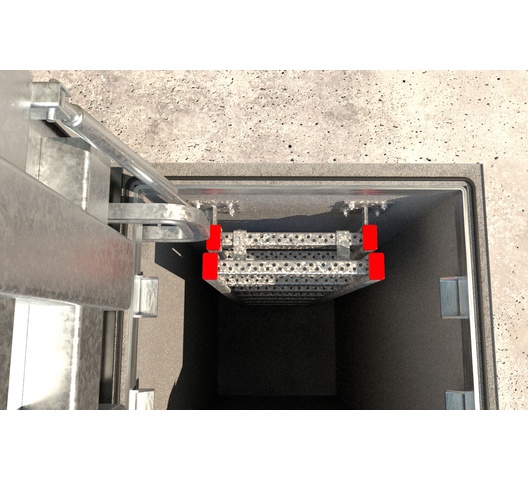

Steel frameworks, guardrails, ladders, consoles
-
Cable trays, machinery, staircases, gates, façade elements
-
Ideal where concrete integrity isn't compromised by cracks=.
Installation Guide
-
Drill a 12 mm hole at least 100 mm deep.
-
Insert the anchor and position the hex nut so the drive-in pin protrudes approx. 3 mm.
-
Tighten to specified torque—the cone is drawn into the clip, expanding to grip the hole wall=.
-
Set flush, ensuring secure, stable anchoring. Applicable for both push-through and pre-positioned methods.
Ideal For
-
Economical, secure fixings in concrete
-
Installations demanding efficient installation cycles
-
Versatile environments benefiting from corrosion-resistant variants
Description
A budget-friendly wedge anchor designed for secure installation in non-cracked concrete (≥ C20/25). With a 12 mm drill diameter and 100 mm embedment, it offers reliable load performance while reducing installation effort—no formal approval required.
Key Benefits
-
Efficient drilling depth: Requires only a 100 mm hole, saving time compared to deeper anchors .
-
High load-bearing capacity: Enables use of fewer anchors or smaller load-bearing plates due to full load performance .
-
Flexible material options: Available in zinc-plated steel for interior use, hot-dip galvanized steel, or sherardized steel for enhanced corrosion resistance.
-
Threading versatility: Comes in both metric and imperial threads to suit diverse global applications.
Technical Data
| Parameter | Specification |
|---|---|
| Drill Ø (d₀) | 12 mm |
| Min. Hole Depth (h₂) | 100 mm |
| Anchor Length (l) | 100 mm |
| Nut Size (SW) | 19 mm |
| Material Options | Zn-plated, HDG, Sherardized steel |
| Qty per Box | 25 pcs |
| EAN (GTIN) | 4006209456484 |
| Suitable Substrate | Non-cracked concrete C20/25 |
Image Source: fischer group of companies
