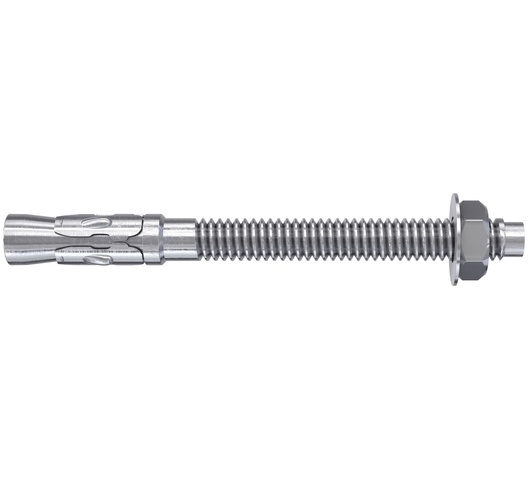

ANCHOR BOLT M16X140 FIS-FWA FISCHER
Product Details
Typical Applications
Ideal for securing:
-

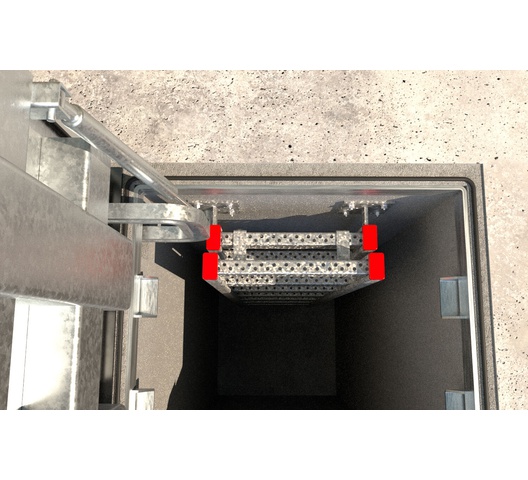

Steel frames, consoles, guardrails, ladders
-
Cable trays, machinery, staircases, gates, façade elements
-
Any installation in non-cracked concrete, where cost-effectiveness is key.
Installation Guide
-
Drill a 16 mm hole at least 140 mm deep.
-
Insert the anchor and position the hex nut so the drive-in pin protrudes roughly 3 mm.
-

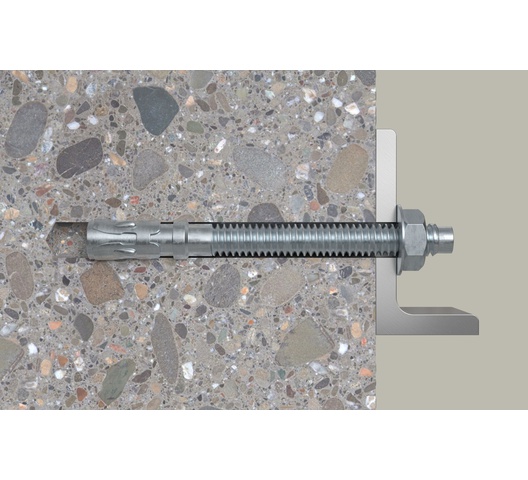

Tighten to the specified torque—this draws the cone into the expansion clip, expanding it securely against the hole wall.
-
Whether pre-positioned or push-through, the anchor immediately stabilizes the fixture upon tightening.
Why Choose FWA 16 × 140?
-
Economical: Provides reliable fixing without needing approval certification.
-
Time-efficient: Shallow embedment speeds up drilling and installation cycles.
-
Versatile & durable: Comes in multiple finishes for different environments and includes both thread standards for global compatibility.
Complementary Products
-
Appropriate socket tool: 24 mm hex for torque-controlled tightening
-
16 mm drill bit: Matched to anchor diameter
-
Washers & nuts: M16 compatible
-
For formal approvals or cracked concrete, consider fischer FH II or FAZ II Plus approved anchors.
Description
A cost-effective wedge-style bolt anchor, the FWA 16 × 140 provides secure fixing in non-cracked concrete (≥ C20/25) without requiring system approval. Its shorter embedment depth enables faster installation while still offering reliable load capacity.
Advantages
-
High load-bearing performance: Despite its compact embedment length, it delivers impressive load capacities, reducing the number of anchors or plate size required.
-
Faster installation: The 140 mm anchor length allows for shallower drill hole depths—saving time and effort on site.
-
Material & thread flexibility: Available in zinc-plated (interior use) or hot-dip galvanized steel (enhanced corrosion resistance); offered with both metric and imperial threads
Technical Specifications
| Parameter | Specification |
|---|---|
| Drill hole Ø (d₀) | 16 mm |
| Min. hole depth (h₂) | 140 mm |
| Anchor length (l) | 140 mm |
| Hex nut size (SW) | 24 mm |
| Material options | Zinc-plated or HDG steel |
| Thread types | Metric & imperial |
| Packaging | Folding box, 10 pcs per pack |
| GTIN (EAN) | 4006209457986 |
