ANCHOR BOLT M8X80 FIS-FWA FISCHER

Product Details

Applications

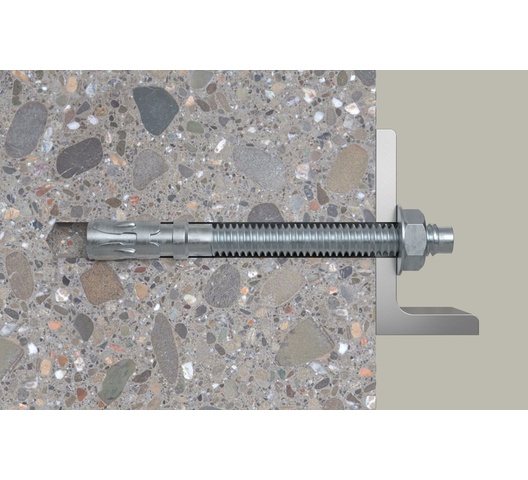

Perfect for securing:

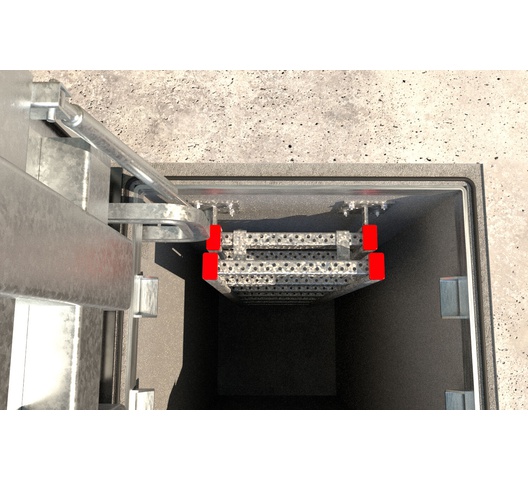

Steel structures, consoles, ladders, guard rails
Cable trays, machinery, staircases, gates, façade components
Any fixings in non-cracked concrete where maximum efficiency is essential.

Installation Guide

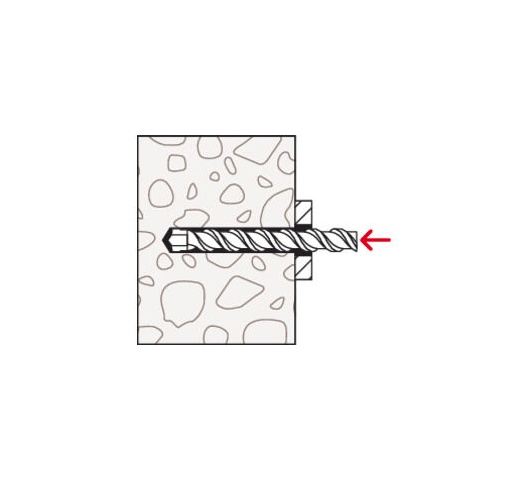

Drill an 8 mm hole at least 80 mm deep.

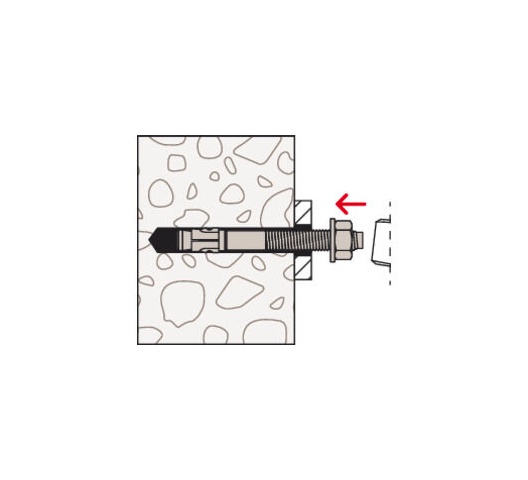

Insert anchor; position the hex nut so the drive-in pin projects ~3 mm.

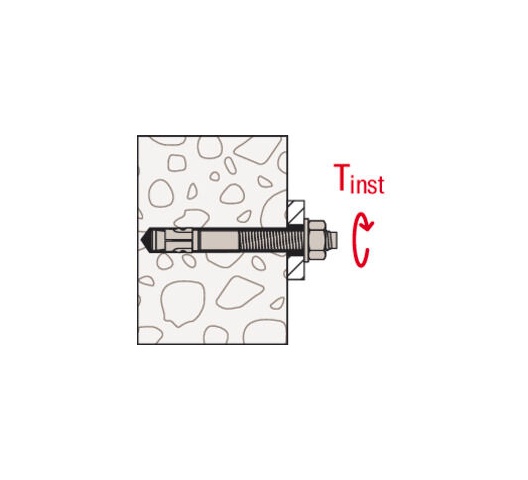

Tighten to the specified torque—this draws the cone into the clip, expanding it securely.

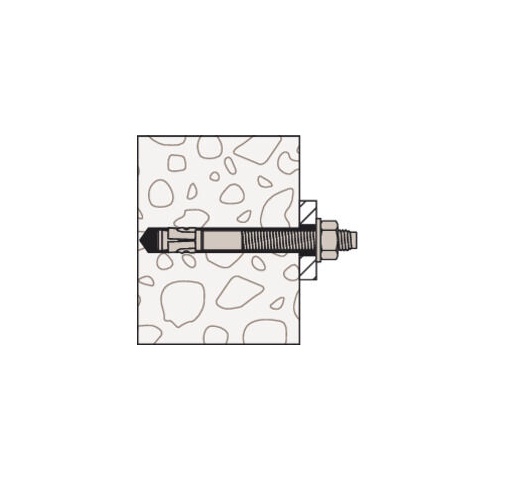

Works for both pre-positioned and push-through installation methods.

Why Choose FWA 8 × 80?

Budget-friendly yet highly reliable for everyday structural applications
Efficient drilling and faster installation—ideal for high-volume jobs
Versatile finishes and threading ensure adaptability to different environments and regions

Complementary Products & Tools

Use with a 13 mm hex socket and torque wrench
Pair with an 8 mm drill bit
Compatible washers and nuts for M8 threading
For approved fixings or cracked concrete, consider fischer FH II or FAZ II Plus anchors

Description

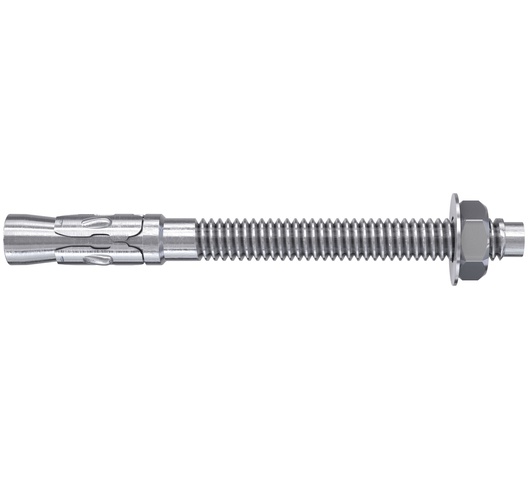

The FWA 8 × 80 is an economical wedge-style anchor designed for quick and secure fixing in non-cracked concrete (≥ C20/25). With a reduced embedment depth, it speeds up installation while maintaining strong pull-out capabilities—no formal approval necessary.

Key Benefits

Cost-effective solution: Ideal for applications where approvals aren't required.
Fast drilling & installation: Requires just an 80 mm hole, minimizing labor time .
High load capacity: Enables fewer anchors or smaller base plates due to robust anchoring
Multiple finishes & thread types: Available in zinc-plated or hot-dip galvanized steel, with metric or imperial threads for global compatibility.

Technical Specifications

Parameter	Specification
Drill diameter (d₀)	8 mm
Minimum hole depth (h₂)	80 mm
Anchor length (l)	80 mm
Nut width (SW)	13 mm
Material options	Zinc-plated / HDG steel
Thread types	Metric & imperial
Packaging	Folding box, 50 pcs
GTIN (EAN)	4006209457894
