ANGLE BRAKCET MW90 FIS-MW FISCHER
by FISCHER
Product Details
Applications
-
Ideal for connecting FLS light-channel profiles at 90° angles.
-

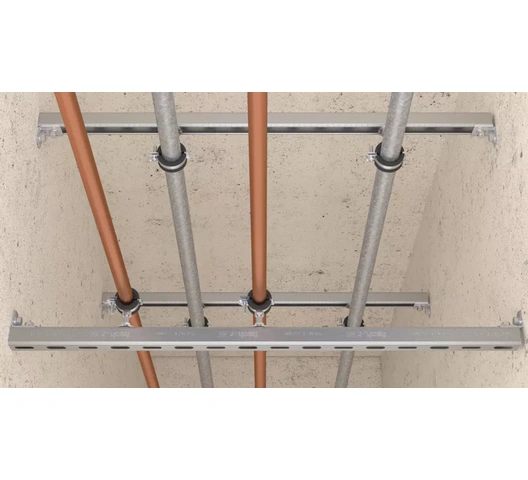

Suitable for creating structural frames, ceiling grid supports, and equipment mounts.
-
Combined with FSM Clix P nuts for quick, tool-assisted assembly.
-
Galvanized version is designed for indoor commercial and residential environments.
Installation Guide
-

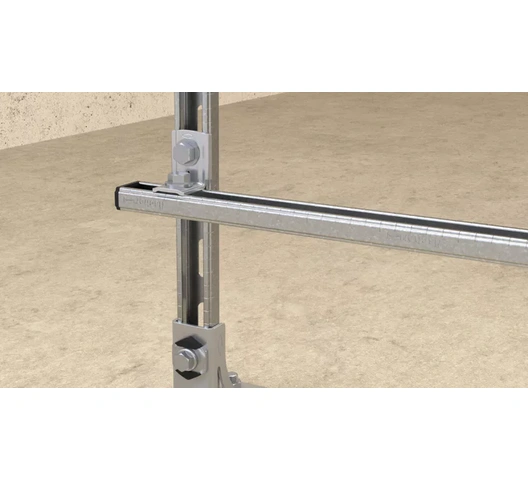

Insert bracket into FLS channel—retaining lugs snap into the profile slot.
-
Fit FSM Clix P nut into channel; align hole and secure with 10 Nm torque.
-
For substrate attachment, use the MWU variant with pre-drilled hole or slot.
-
Verify form-fit engagement in both channel directions.
Why Choose MW 90°?
-
Reduces parts and assembly time.
-
Ensures repeatable, high-precision connections.
-
Integrates seamlessly into the FLS modular system.
-
Zinc coating protects against corrosion in standard indoor settings.
Description

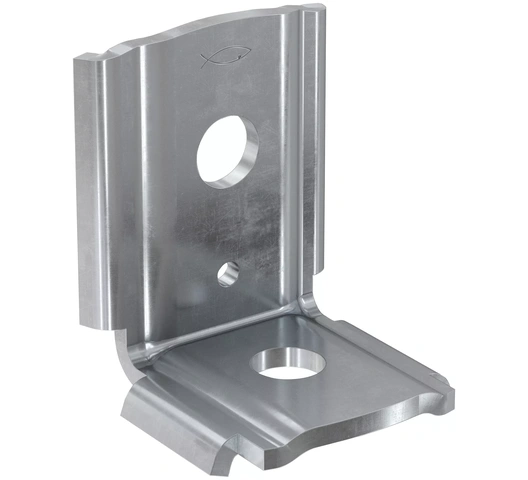

The MW 90° bracket is a galvanized steel construction accessory from the FLS light-channel system. It enables strong, form-fitting 90° mounting-channel connections—either channel-to-channel (using FSM Clix P nut) or channel-to-substrate via the MWU version.
Key Features & Benefits
- Form-locking installation: Features specially designed retaining lugs ensuring secure fitting both longitudinally and transversely to FLS channels.
- Standardized holes: Contains 8.5 mm holes perfectly compatible with FSM Clix P 8 nuts; punch-out plugs are 8 mm for easy fitment.
- Galvanized finish: Electro-zinc-coated steel (S235JR+CR per DIN EN 1652) offers suitable corrosion protection for dry interior use.
- Robust load performance:
- Tension: Up to 1.5 kN (with FLS 17/30) and 2.0 kN (with FLS 37)
- Shear: 1.0 kN
- Recommended tightening torque: 10 Nm.
- Efficient packaging: Supplied in boxes of 50 pieces with EAN 4048962265293.
Technical Specifications
| Parameter | Value |
|---|---|

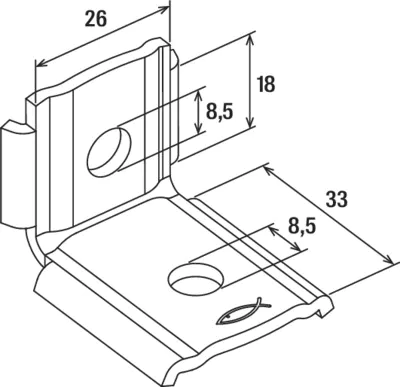

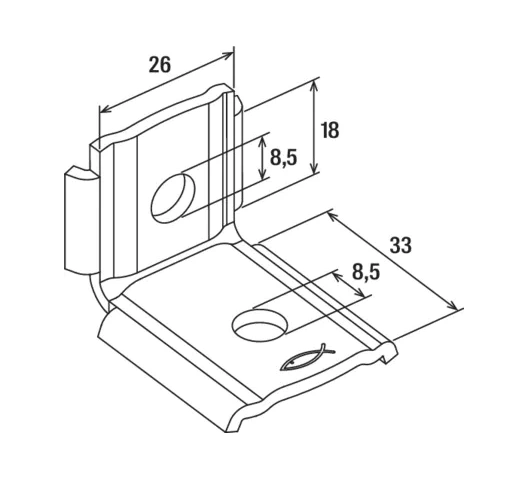

| Hole diameter | Ø 8.5 mm |
| Max. tension load (FLS 17/30) | 1.5 kN |
| Max. tension load (FLS 37) | 2.0 kN |
| Max. shear load | 1.0 kN |
| Installation torque | 10 Nm |
| Material | Steel S235JR+CR, zinc-plated |
| Packaging | Folding box, 50 pcs |
| GTIN / EAN | 4048962265293 |
Image Source: fischer group of companies
