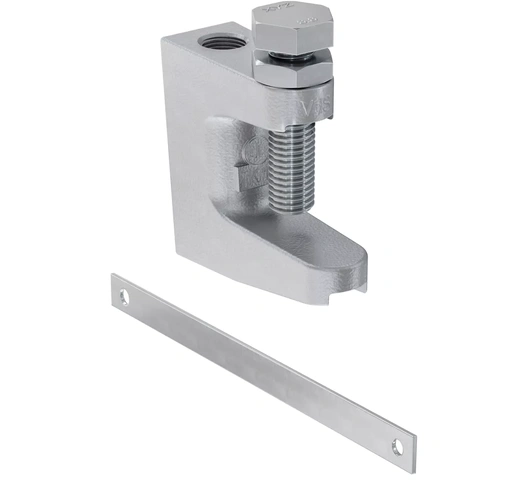

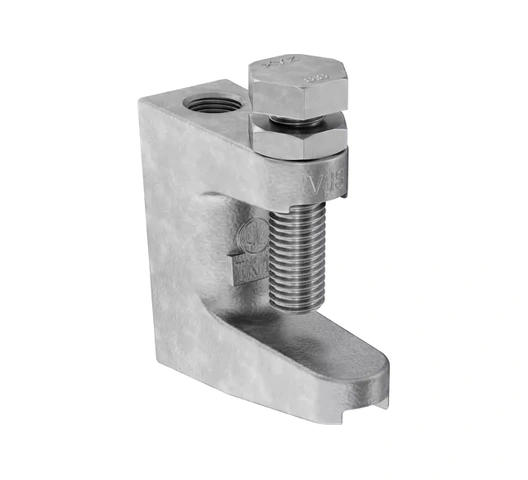

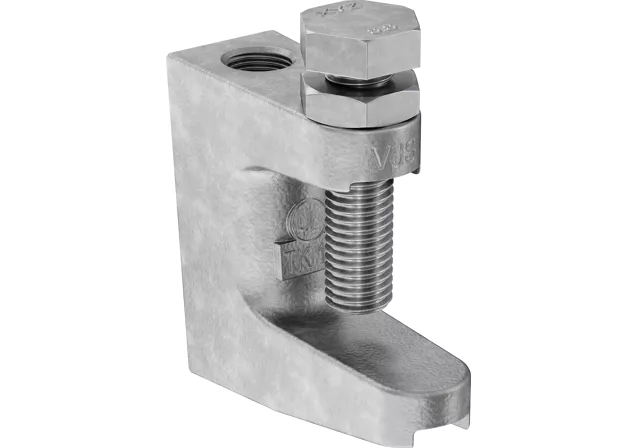

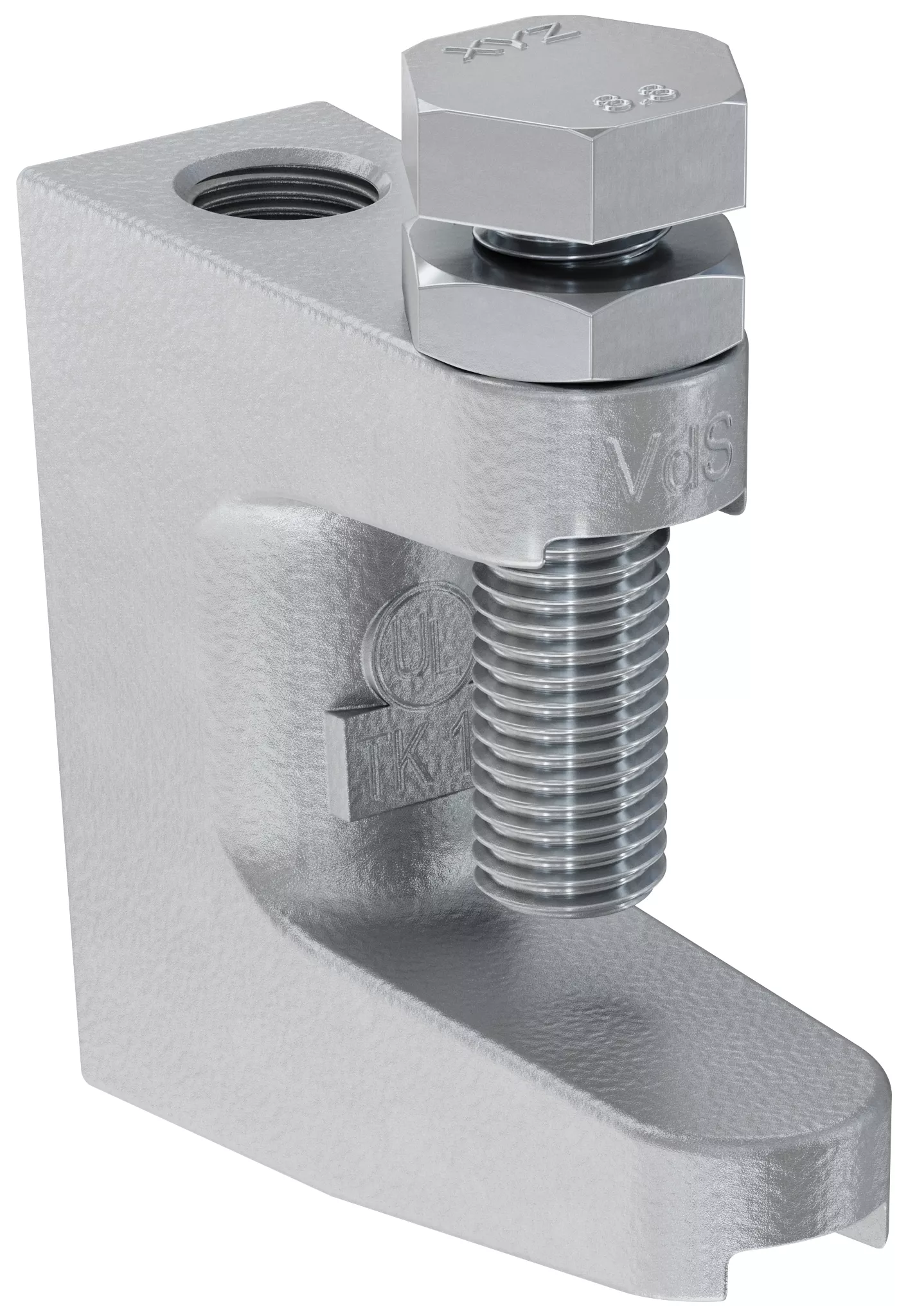

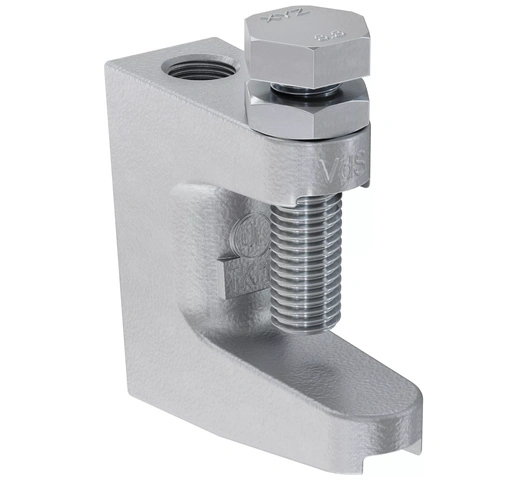

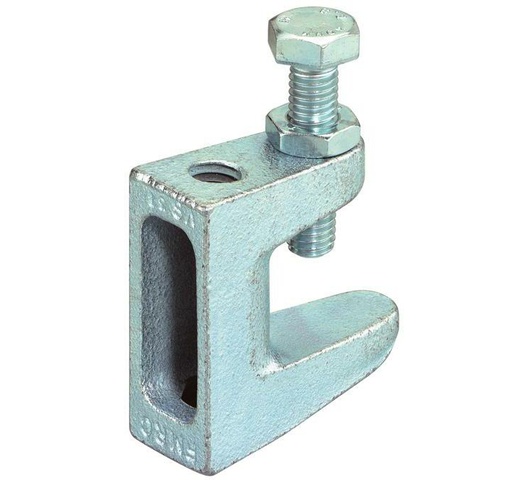

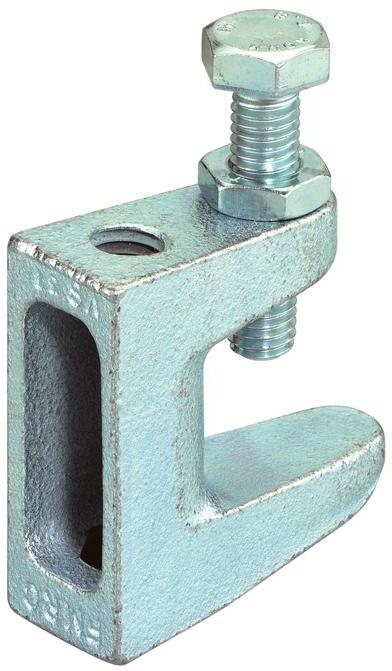

BEAM CLAMP M10 FIS-TKL FISCHER
by FISCHER
Product Details
Ideal Applications
-
Supports for pipework (e.g., sprinkler, HVAC), cable trays, conduit, and other installations on steel beams
-

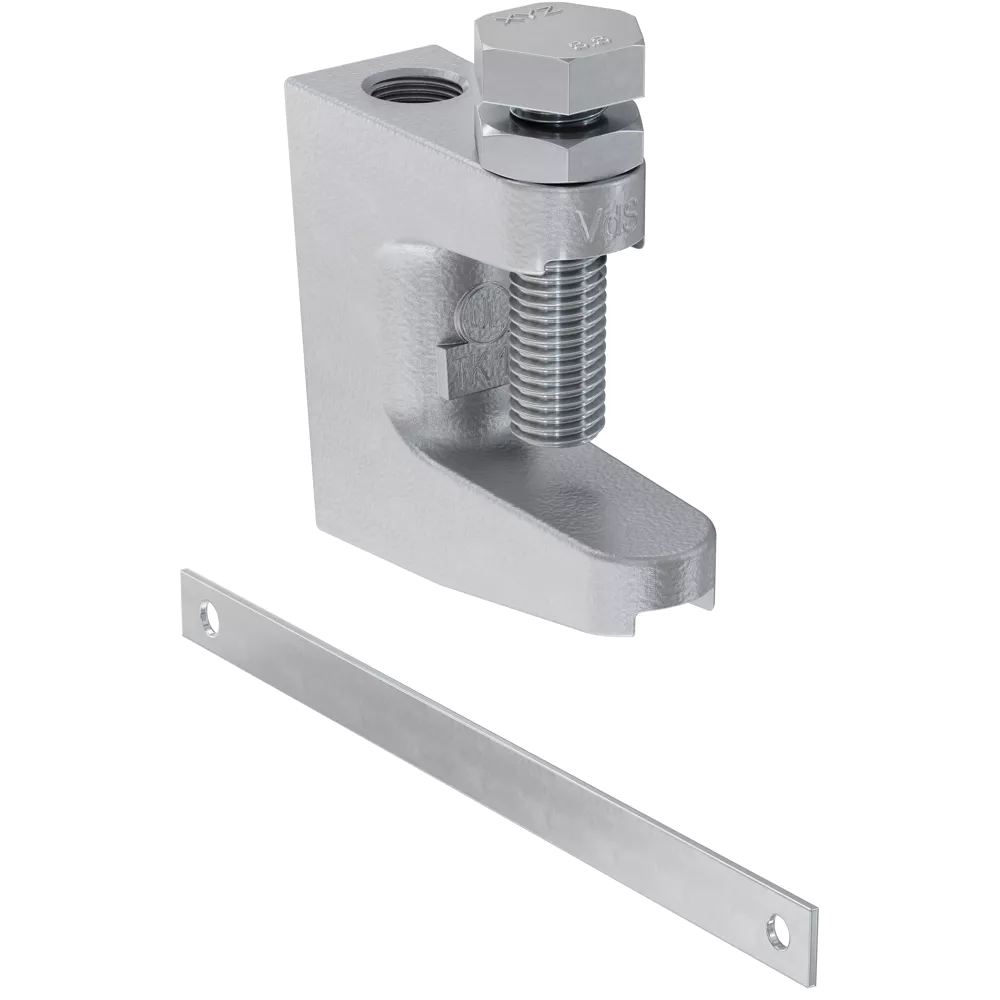

Used in dry interior areas; optional hot-dip galvanised version (Art. 564393) is available for outdoor use
-
Required retention straps (SS‑TKL) for VdS-approved pipe installations ≥ DN 65
Installation Instructions
-
Loosen clamp screw to open the clamp jaws wider than the beam flange.
-
Mount the clamp over the beam and tighten the screw—ensure full contact.
-
Thread in an M10 rod or accessory directly into the integrated nut socket.
-
Verify clamping is secure before loading.
-
If installing large-diameter pipes, add the SS‑TKL safety strap per code.
Why Choose TKL M10?
-
Fast, non-invasive installation—no hot-work permits or drilling required
-
Reliable performance with verified certifications
-
Versatile and durable, suited for multiple piping and system supports
-
Compact form factor with high load capacity benefits
Description
The TKL M10 is a robust beam clamp designed for efficient mounting on steel girders without welding or drilling. Suitable for threaded rods up to M10, it enables fast and flexible installations—perfect for supporting piping, sprinkler systems, or conduit runs.
Key Features & Benefits
-
Quick clamping installation: Secures onto steel beams using a precision-engineered clamping screw—no welding or pre-drilling needed.
-
Hollow-ground screw: Designed to resist slipping off the girder flange, even under load.
-
Certified safety: Independently approved by VdS, FM, and UL, offering verified performance in fire safety and sprinkler systems.
-
High load-bearing capacity: Compact, solid cast-iron body supports up to 2.5 kN in central tension.
-
Durable construction: Made from malleable cast iron (EN-GJMB-350-10), bolt in steel grade 8.8, and zinc-plated for corrosion protection .
Technical Specifications
| Parameter | Value |
|---|---|
| Clamping range (D) | 0–20 mm |
| Thread size (A) | M10 |
| Max. recommended static load | 2.5 kN |
| Certifications | VdS, FM, UL |
| Material – Clamp body | Malleable cast iron EN‑GJMB‑350‑10 |
| Fastener bolt | Steel 8.8, ISO 4017 |
| Nut | Steel, ISO 4035, grade 4 |
| Finish | Electro-galvanized zinc |
| Quantity per package | 50 pcs |
| GTIN / EAN | 4006209796887 |
