Applications & Approvals

• Ideal for heavy load-bearing connections such as steel structures, staircases, equipment, and facades.

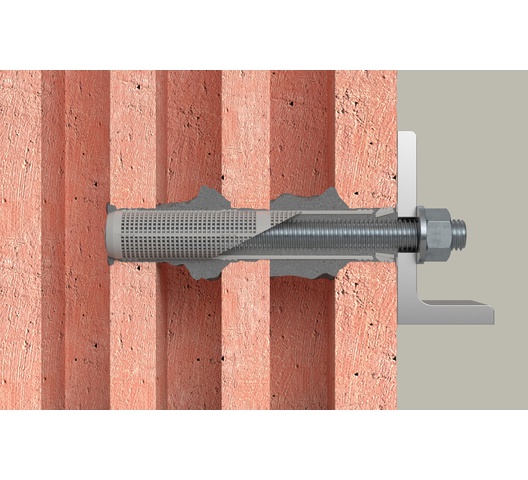

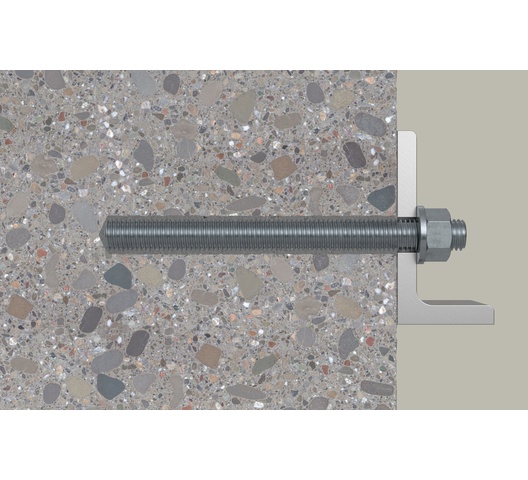

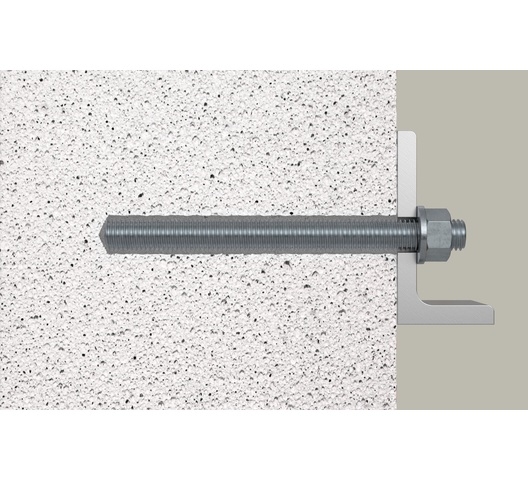

• Approved for anchoring in cracked and non-cracked concrete, masonry, aerated concrete, and solid brick—pending the injection mortar's approval.

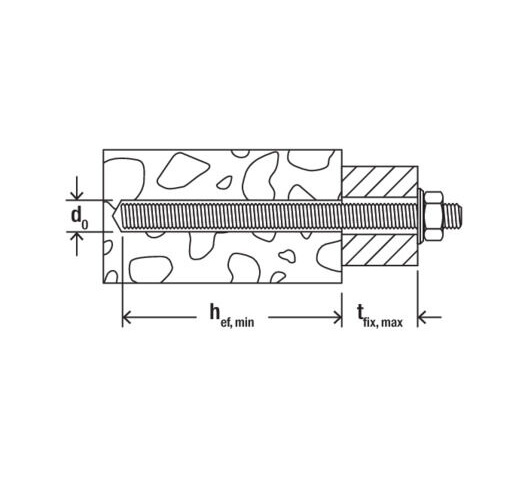

• Variable embedment depth allows easy adaption to structural load requirements and reduces material use.

Installation Guide

1. Drill a 18 mm hole of appropriate depth.

2. Thoroughly clean the hole (brush + blow-out) to ensure optimal bond strength.

3. Position the rod with static mixer and inject resin from bottom up.

4. Insert rod manually, rotating until seated at the hole base.

5. Tighten to the torque specified in mortar documentation.

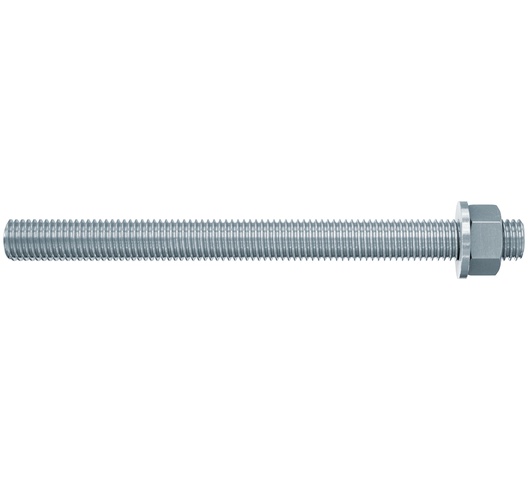

Why FIS A M16 × 130?

• High-strength construction for sustained load applications.

• Fully interchangeable across mortar systems, simplifying inventories.

• ETA-certified in multiple substrates, including seismic and dynamic loading scenarios.

• Corrosion-resistant options available for indoor or outdoor use.
