CHEMICAL ANCHOR 390ML EPOXY PLUS FIS-EM PLUS FISCHER
by FISCHER
Product Details
Applications
-
Post-installed rebar connections
-
Concrete-concrete shear connectors
-
Heavy steel supports, guardrails, sound barriers
-
Silo, pipeline, canopy, and timber-related connections
-
Ideal for diamond-drilled, water-filled boreholes, seismic zones, and timber structures
Compliance & Approvals
-
Concrete: C20/25–C50/60, cracked/non-cracked
-
Seismic: ETA‑certified for C1/C2
-
Timber: Z‑9.1‑914 (laminated timber)
-
Waterproof: WRL §19 approval, ICC-listed (ESR‑1990)
-
Durability: ETA‑23/0842, ETA‑19/0657, ETA‑22/0001, ETA‑17/0979, ETA‑17/1056; DoP 0341, 0367, 0366; EPD‑DBC‑FIW etc.
Installation & Use
-
Drill hole to correct diameter and clean thoroughly.
-
Insert static mixer and inject mortar, filling from the bottom up.
-
Introduce FIS A rod or RG M I anchor while gently rotating.
-
Mortar fills annular gaps; no air entrapment ensures strong bond.
Why FIS EM Plus?
-
✔ Highest load performance in cracked, seismic, and timber substrates
-
✔ Extremely durable—100+ years lifespan
-
✔ Seamless usability in challenging conditions (water, low temp)
-
✔ Full system integration with fischer fixings
Accessories & System Tools
-
Threaded rod FIS A, internal anchor RG M I
-
Static mixers: FIS MR Plus, UMR
-
Injection gun: e.g., FIS AM dispenser
-
Support components: masonry bit, rebar anchors, etc.
Description
FIS EM Plus is a vinyl ester hybrid epoxy injection mortar developed for maximum load-bearing capacity in both cracked and non-cracked concrete, including seismic categories C1 and C2. It accommodates rebar connections (Ø 8–40 mm), shear connectors, heavy steel frames, tall shelving, and more—indoors or out, even in water-filled or diamond-drilled holes.
Key Features
-
Optimised formulation delivers improved bonding in cracked and non-cracked concrete.
-
Long-term durability: ETA-certified for 100-year service life, with IEA Stuttgart validating up to 120 years.
-

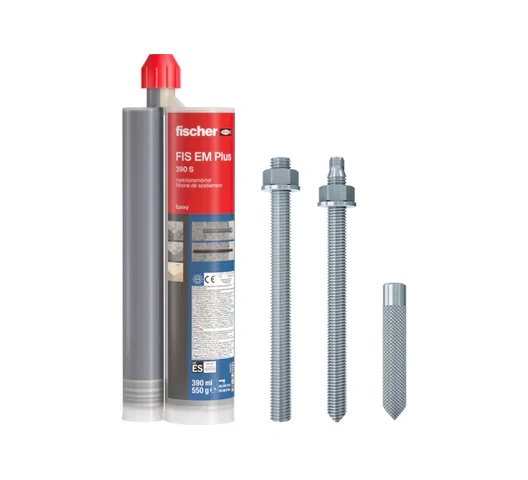

Versatile anchoring: Compatible with threaded rod FIS A or internal threaded anchor RG M I for variable depths and removable fixings.
-
All-season workability: Usable from –5 °C to +40 °C; approved for underwater applications and diamond-drilled holes.
-
Seismic rated & WRL-compliant: Factory-approved for seismic use and waterproof-sealing compliance.
-
Timber anchoring: Certified for use in glued laminated timber (spruce, fir, pine).
Technical Data & Packaging
| Variant | Cartridge Size | Includes | EAN |
|---|---|---|---|
| 390 S | 390 ml | 2 × FIS MR Plus mixers | 4048962312058 |
| 390 S (Americas) | 390 ml + 2 mixers | – | 4048962312256 |

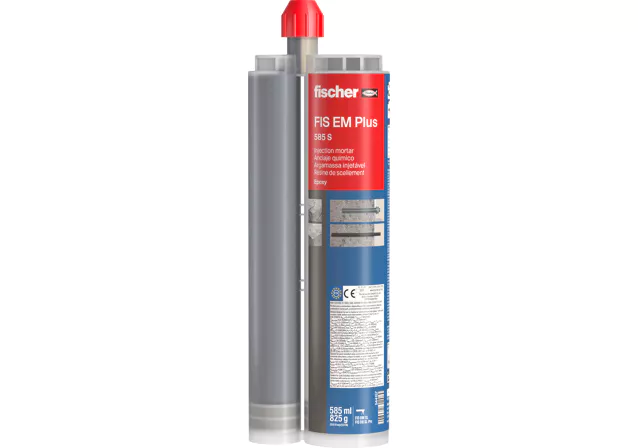

| 585 S | 585 ml + 2 mixers | – | 4048962312089 |
| 1500 S | 1500 ml + 2 UMR mixers | – | 4048962312171 |
All cartridges come with static mixers to ensure correct resin-hardener mixing
Image Source: fischer group of companies
