PIPE CLAMP 32-36MM (1") FIS-FRSR FISCHER
Product Details
Applications
-

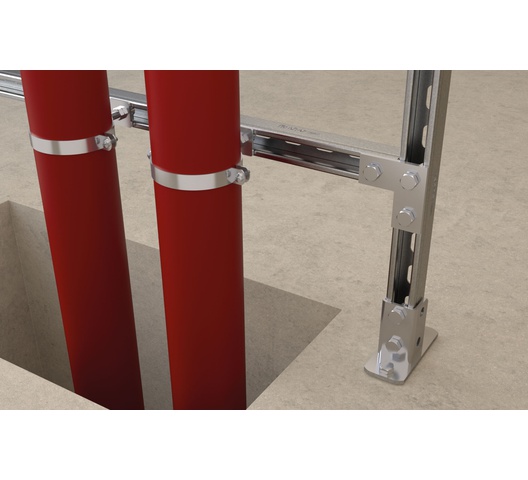

Fixed installation of metal or plastic pipelines with threaded rods/hanger bolts
-
Suited for industrial settings and utility pipelines that do not require acoustic insulation
-
Ideal for building systems such as water, compressed air, or drainage lines in dry indoor areas
Installation Tips
-

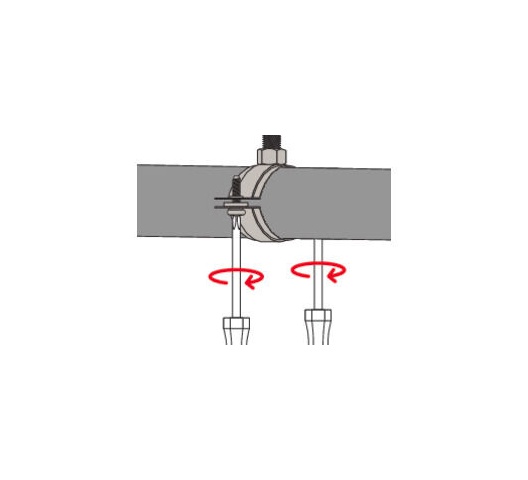

Place the clamp around the pipe and adjust screws until snug.
-
Thread a rod or stud into the M8/M10 nut; tighten to secure.
-
Confirm stable and aligned pipe support.
Why Choose FRSN 32–36?
-
Enables precise pipe alignment through adjustable screws
-
Offers versatile rod compatibility with combined M8/M10 threading
-
Ensures reliable, safe fastening thanks to screw retention
-
Built-to-last with zinc-plated, corrosion-resistant steel
Description

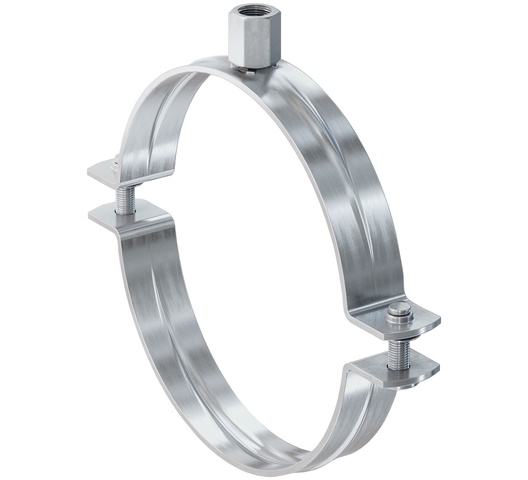

The FRSN is a two-screw pipe clamp crafted from zinc-plated DD11 steel, designed for secure fixing of metal or plastic pipes in dry indoor environments—without sound insulation. It’s ideal for industrial and utility systems where vibration dampening isn’t required.
Key Features & Benefits
-
Dual screws allow precise adaptation to the pipe outer diameter, ensuring a tight and secure fit .
-
Combination M8/M10 thread on the integrated nut provides flexible installation options with threaded rods or hanger bolts.
-
Screw loss protection ensures fasteners remain connected during handling and mounting.
-
Robust zinc plating offers corrosion resistance for extended durability in dry indoor applications
| Specification | Value |
|---|---|
| Clamping Range | 32–36 mm (1″) |
| Material | Steel DD11 (DIN EN 10111), zinc-plated |
| Thread | Combined M8/M10 (nut with SW 13/M10–12 SW 17) |
| Locking Screw | Flat-head, anti-loss |
| Band Dimensions | 20 mm wide × 1.5 mm thick |
| Height | 54 mm |
| Recommended Central Tension Load | 1.5 kN |
| Packaging | Boxes of 100 pcs |
| GTIN (EAN) | 4006209497937 |
