SLIDING CHANNEL NUT FIS-FSM FISCHER
by FISCHER
Product Details
How It Works
-
Insert horizontally into the channel slot.
-
Rotate 90° to engage teeth and lock securely.
-
Attach component—push-in load stays fixed in position.
-
Adjustable as needed: simple repositioning by rotating back.
Ideal Applications
-

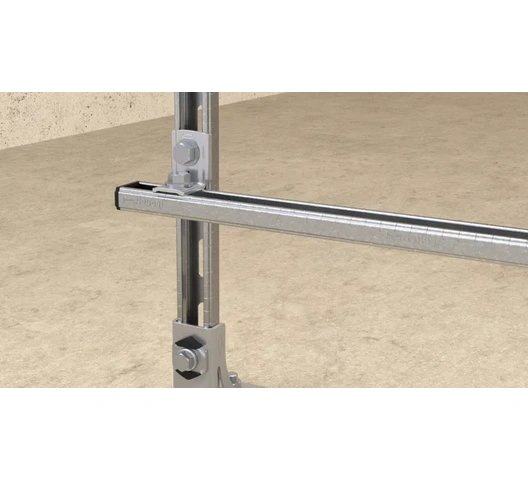

Joining FLS channels and construction elements like SV or MW brackets
-

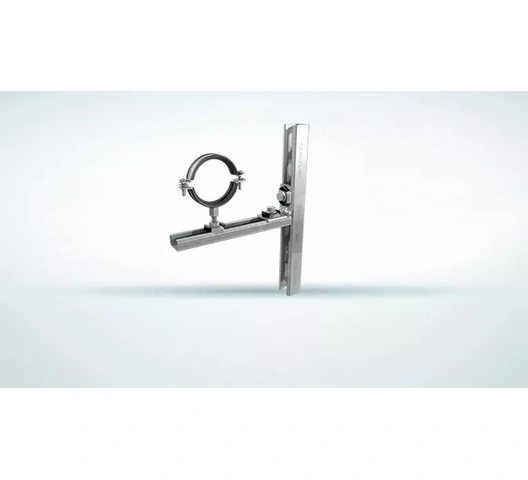

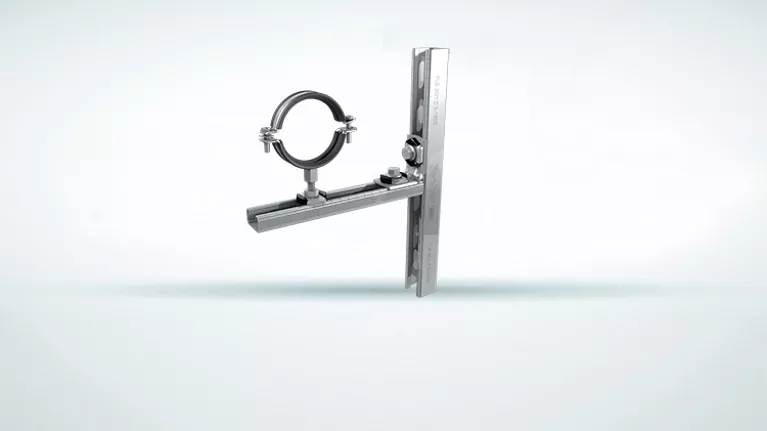

Use with pipe clamps, saddle flanges, and connectors
-
Suitable for mounting in dry interior environments and fire-rated systems
Accessories & Related Parts
-
Channel Washers HK, FHS Clix T-head bolts, FSM Clix M (for pipe clamps), FCN Clix P (for FUS channel system), and complete FLS channels.
Why Choose FSM Clix P?
-
Speedy, tool-free installation via twist-lock design
-
Secure metal-to-metal connection with high load capacity
-
Fire-safe and code-compliant—R120, MLAR ready
-
Versatile range: three thread sizes for varied applications
Description

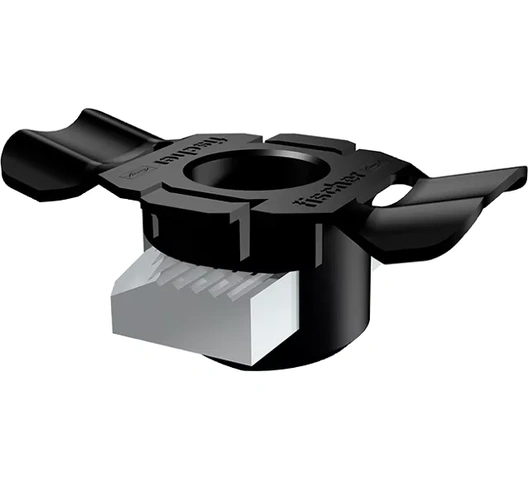

The FSM Clix P is a galvanized sliding channel nut designed for quick and secure connections within the FLS light-channel system. With a simple 90° twist activation, it enables fast integration of channels and components—ideal for efficient installations in indoor, fire-rated environments .
Key Features & Benefits
-
Rapid 90° twist locking: Installs swiftly with a quarter-turn, saving time over conventional nuts .
-
Flood contact tongue & gripping teeth: Ensures secure positioning and prevents slippage under load.
-
Spring-leg design: Maintains tension against the channel web for consistency and ease during assembly.
-
No plastic barrier: A vanishing thrust block allows direct metallic contact—ideal for load-critical longitudinal connections.
-
Fire and MLAR tested: Certified for up to R120 fire resistance and MLAR R30 cable routing compliance.
-
Zinc-plated steel: Provides corrosion protection suitable for dry interior installation.

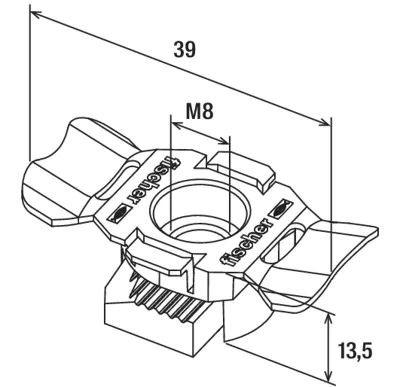

Available Sizes & Load Capacities
| Size | Thread | Tension Load FLS 17/30 | Tension Load FLS 37 | Shear Load | Pack Quantity | GTIN |
|---|---|---|---|---|---|---|
| FSM Clix P 6 | M6 | 1.5 kN | 2 kN | 1 kN | 50 pcs | 4048962265040 |
| FSM Clix P 8 | M8 | 1.5 kN | 2 kN | 1 kN | 50 pcs | 4048962265088 |
| FSM Clix P 10 | M10 | 1.5 kN | 2 kN | 1 kN | 50 pcs | 4048962265101 |
