WALL PLUG 10MM X 40 (50PC) FIS-S10 FISCHER
by FISCHER
Product Details
Applications
Ideal for fixing items like:
-
Curtain rails, electrical junction boxes, information boards, lighting fixtures
-
Letterboxes, movement detectors, and picture frames
-
Wood or chipboard screws (Ø 6–8 mm depending on plug length)
Suitable substrates:
-
Concrete, natural stone, sand-lime brick, solid lightweight brick, and solid brick
Why Choose FIS‑S10?
-
Provides secure, edge-friendly expansion thanks to 2-way spread design
-
Anti-rotation feature enhances safety during screw tightening
-
Flush installation with rimless design for aesthetic finishes
-
Trusted nylon construction used globally for decades
Installation Tips
-

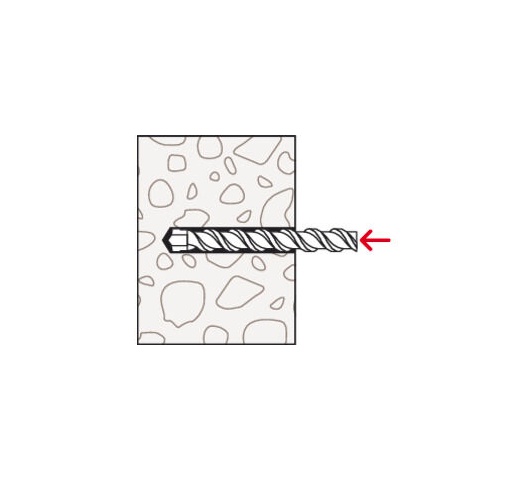

Drill a 10 mm hole to a minimum depth of 70 mm.
-
Clean the hole of dust for optimal performance.
-
Push the FIS‑S10 fully flush with the surface.
-

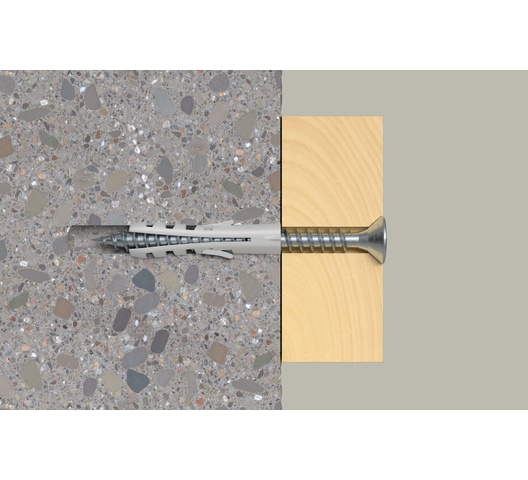

Insert a suitable screw (Ø 6–8 mm) and tighten to engage expansion.
-
For edge fixings, rotate plug so it expands parallel to the edge.
Complementary Products
-
Fischer screws in matching diameters
-
FIS‑S plug series ranging from S6 to S14 for various load requirements
-
Fixperience design software and load tables available for pull-out calculations
Description

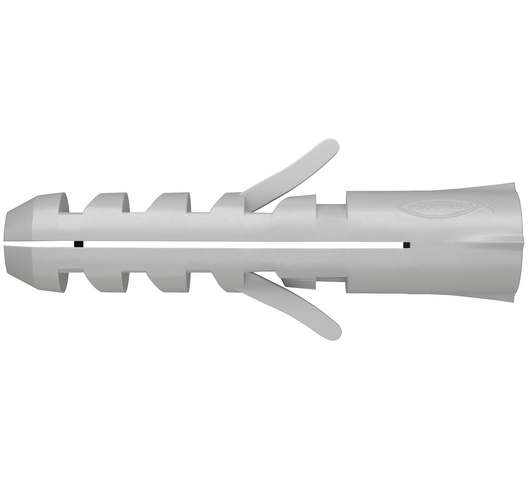

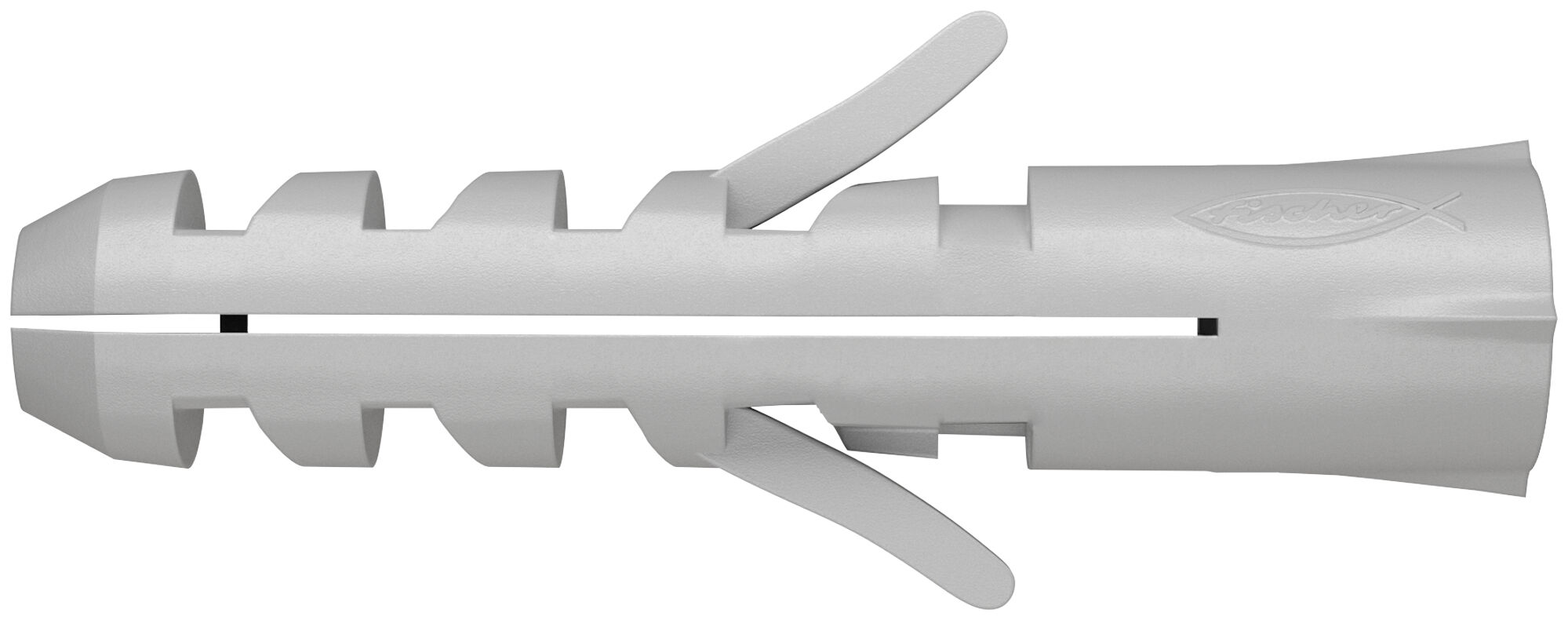

The FIS‑S10 is a rimless nylon expansion plug designed for both pre-positioned and push-through installation. It ensures reliable anchoring in concrete and solid masonry, combining simplicity and safety with approval-friendly performance.
Key Features & Benefits
-
Slim, rimless design enables installation flush with plaster or insulation, maximizing load-bearing depth.
-
Two-way expansion ensures controlled spreading for strong fixation, and its orientation can reduce stress near edges.
-
Anti-rotation lock prevents the plug from turning in the hole during screw insertion, reducing installation errors.
-
Easy push-in flexibility—made from high-quality nylon for smooth, hassle-free insertion.
Technical Specifications
| Spec | Value |
|---|---|
| Drill Ø (d₀) | 10 mm |
| Plug length (l) | 40 mm |
| Min. hole depth (h₁) | 70 mm |
| Screw Ø (dₛ) | 6–8 mm |
| Material | High-quality nylon |

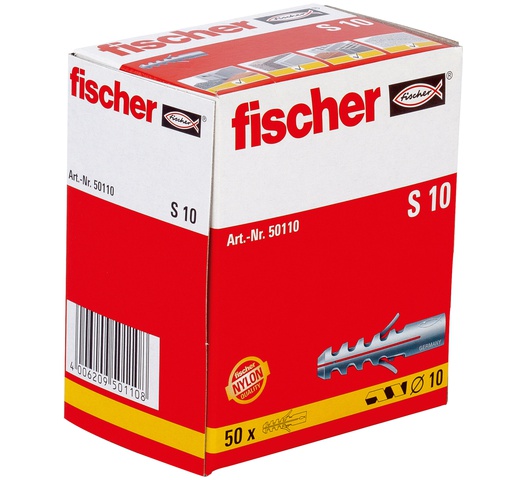

| Qty per pack | 50 pcs |
| Packaging | Folding box |
| GTIN (EAN) | 4006209501108 |
