WALL PLUG 6MM X 30 (100PC) FIS-S6 FISCHER
Product Details
Applications
Ideal for fastening:
-
Picture frames, light fixtures, shelf brackets, and electrical boxes
-
Curtain rails, motion sensors, signage, and mailbox fittings
Suitable for use in:
-
Concrete, solid brick, sand-lime brick, and natural stone
Installation Tips
-
Drill a clean 6 mm hole to at least 40 mm depth.
-
Insert the plug flush with the surface.
-
Choose an appropriate screw (Ø 4–5 mm) and tighten—expansion happens symmetrically.
-
If fixing near edges, rotate plug so ribs expand parallel to the edge, minimizing material stress.
Why Choose fischer S 6?
-
Efficient and clean: Rimless design ensures a neat finish.
-
High holding power: Two-way expansion delivers strong anchorage.
-
Edge-friendly: Rotation feature reduces risk of damage near edges.
-
Trusted durability: Proven nylon material for lasting fixings
Description

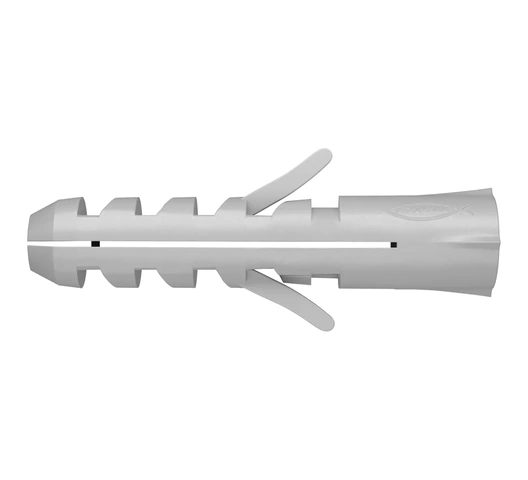

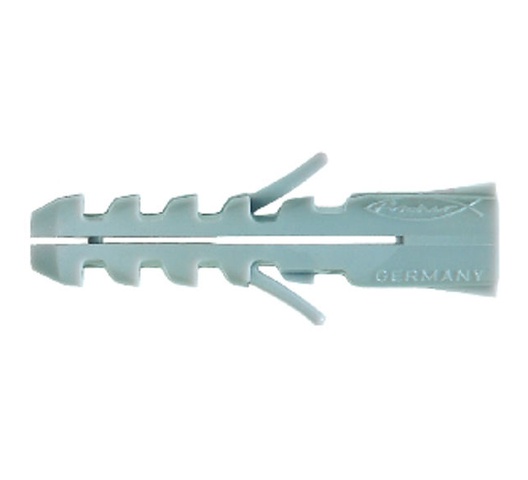

The fischer Plug S 6 is the classic, rimless nylon expansion plug, designed for pre-positioned and push-through installation. With efficient two-way expansion, it ensures high-strength anchoring in concrete and solid masonry, while its sleek form and anti-rotation lock guarantee ease of installation and reliable holding power
Key Features
-
Rimless slender profile: Enables full embedment flush with the surface—even below plaster—maximizing grip depth.
-
2-way expansion: Expands symmetrically to prevent edge damage; rotate plug to align expansion forces parallel to edge for minimal spacing.
-
Anti-rotation ribs: Keeps plug stable in hole during screw insertion for consistent anchorage.
-
Nylon durability: Crafted from high-quality nylon, offering robust and long-lasting performance.
Technical Details
| Specification | Value |
|---|---|
| Drill diameter (d₀) | 6 mm |
| Plug length (l) | 30 mm |
| Minimum hole depth (h₁) | 40 mm |
| Compatible screw Ø (dₛ) | 4–5 mm |
| Material | Nylon |

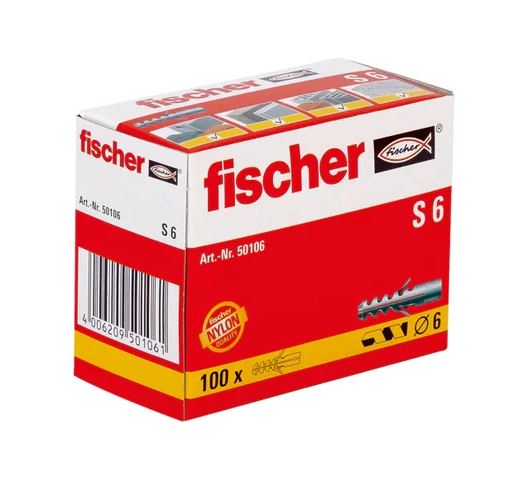

| Packaging | 100 pcs, folding box |
| GTIN (EAN) | 4006209501061 |
